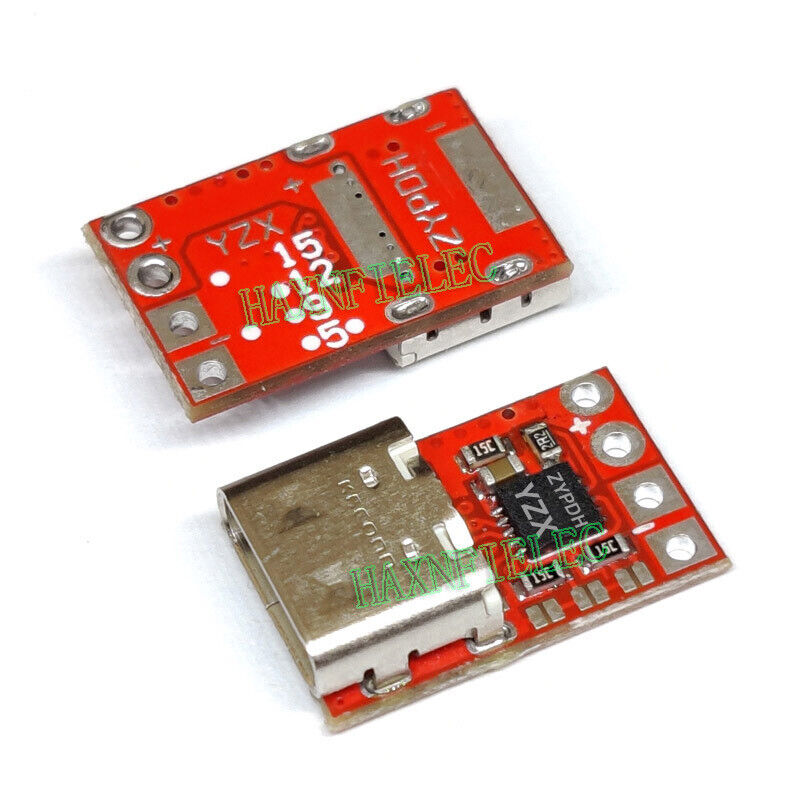

100W 5A decoy PD 2.0 3.0 to DC trigger transfer cable QC4 5V 9V 12V 15V 20V

Supports both QC and PD Decoy.

This product is a one-way PD input to DC output, the input is the C port to plug the PD power supply, and the output is the DC pad, which does not support reverse use.

A PD decoy 5V 9V 12V 15V 20V fully supported, hardware jumper solder joints to set the output voltage, there is no wrong touch or poor contact or software crashes resulting in voltage errors.

Very low static power consumption 4.0mA

DIYER's favorite! Suitable for built into various devices that require 5V-20V.

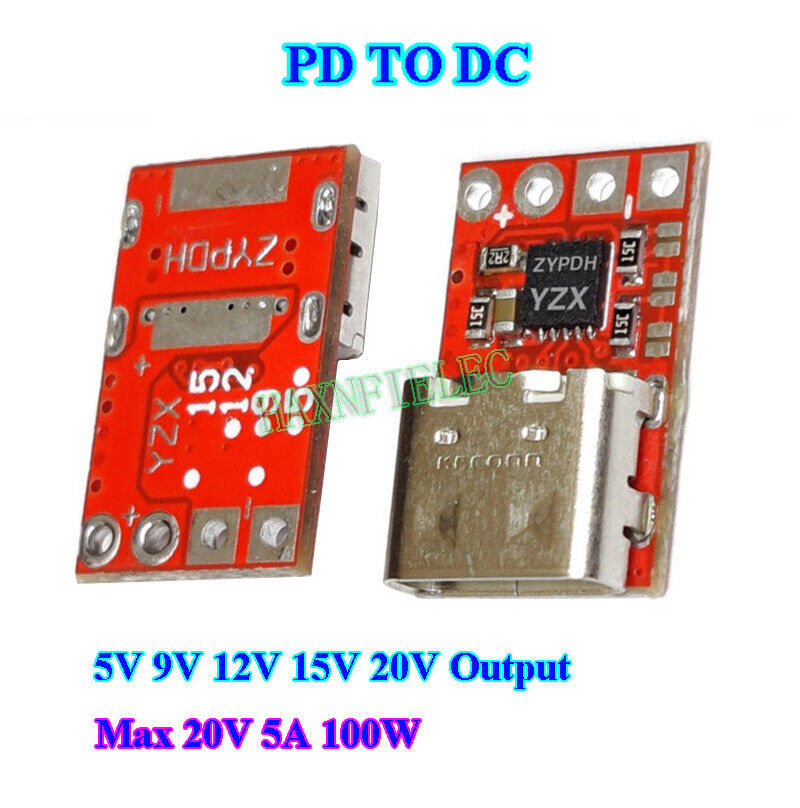

Maximum support 20V 5A 100W, The specific output power depends on the maximum support of the corresponding gears of the charger.

Module Size: 17x10x4mm (L*W*H)

Input Protocol: PD2.0, PD3.0, QC2.0, QC3.0, QC4, QC5

Trigger Gear: 5V, 9V, 12V, 15V, 20V

Output Pads: 2.54mm pitch, Square negative pole and Round positive pole

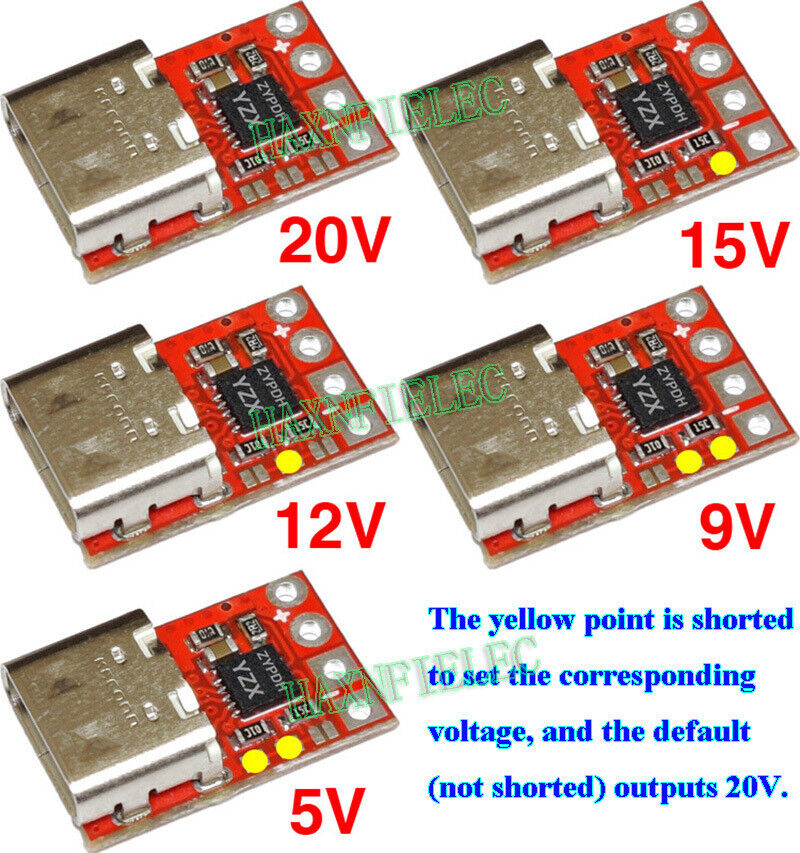

Method of Setting Voltage: As shown in the figure, the Yellow dot represents two pad halves connected by a drop of solder.

The output is connected to 20V by default. It is recommended to actually check the output voltage before use.
