Boost Converter DC-DC Voltage Regulator Step UP/ DOWN converter DC 5-30V to DC 1.25-30V 8A

High quality: the voltage regulator is made of high-quality measuring components. High-quality components ensure high conversion efficiency of up to 93%.
WITH TWO COOLING BODS: The step-down converter with two heat sinks for better heat dissipation supports over current, short circuit and over temperature protection.
The DC converter is compact, easy to carry and store, easy to use, has good performance and a long service life.
This is  DC regulated power converter module with long life, high power and stable performance, which converts 5-30VDC to 1.25-30VDC. Reduce constant current output range: 0.2-10A, operating temperature: -40°C to +85°C, frequency: 150kHz, conversion efficiency: typical 91%, maximum 93%
QUALITY ASSURANCE This buck module is manufactured under strict quality control and standard requirements, and has a high safety factor, so it can be used reliably.

Input voltage:    DC5-30V
Input current:    8A (max) 10A (within 6A for long-term work)
Quiet current:    4mA (there are variations when the working voltage is different)
Output voltage:    1.25-30 V infinitely adjustable
Output current:    10A (Max)
Over current protection:    yes
Short circuit protection:    Yes (current limit protection)
Over temperature protection:    Yes (automatically reduce output voltage)
Reverse Input Protection:    No, please connect a diode in series to the input if necessary

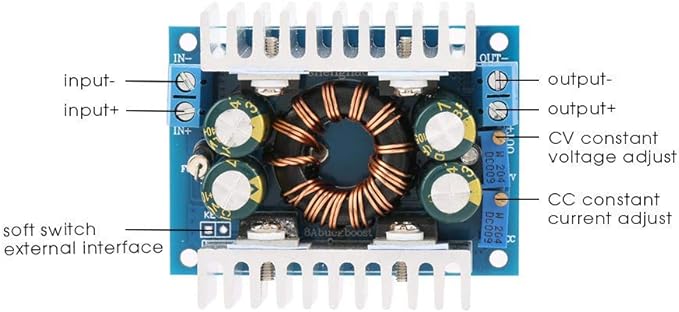

Wiring method:    Terminal block output (in is input, out is output)
