DC-DC Step Up Converter SX1308 Adjustable Boost Converter 2V-24V to 2V-28V 2A Voltage Regulator Power Supply

Mini DC-DC voltage converter board, you can easily get 9V 12V 18V 24V voltge

DC 2-24V input and 2V-28V adjustable voltage output, 2a maximum output current, with high power conversion efficiency up to 93%

Widely used for a storage battery, power transformers, DIY adjustable regulated power supply, industrial equipment, 5V, 9V, 12V, 26V output, etc.

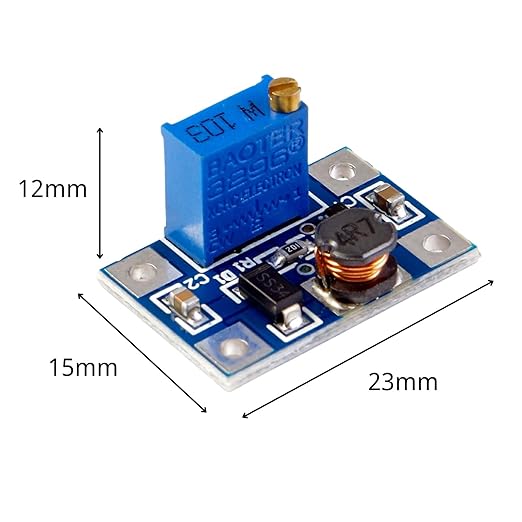

Mini module size: 23 x 16 x 13 mm (L x W x H), can be easily installed in all kinds of small step-up voltage control power equipment.

Technical data:

Input voltage: DC 2V-24V.

Output voltage (adjustable): DC 2V-28V.

Maximum output current: 2A.

Maximum conversion efficiency: 95% (the highest efficiency is achieved at higher output voltages).

Switching frequency: 1.2 MHz.

Load control: ± 0.5%.

Voltage control factor: ±0.5%.

Operating temperature: -45°C ~ +85°C.

Note:

The output voltage must be ~1V higher than input voltage

The peak current at the output must not be more than TV University.
