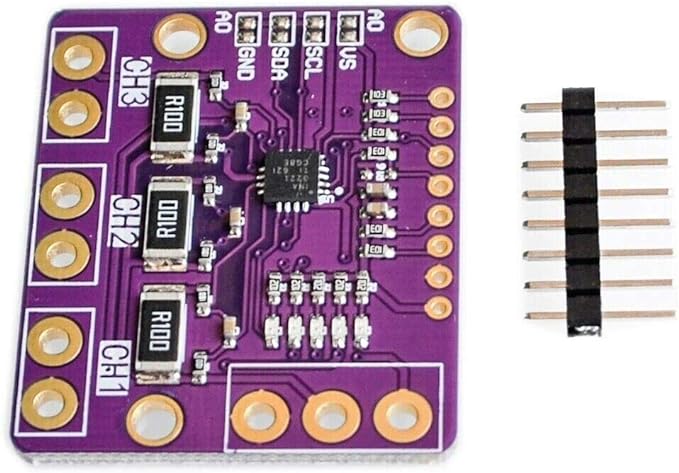

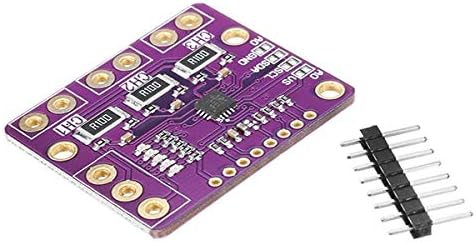

INA3221 INA219 Three Channel Current Voltage Power Sensor Monitor

The INA3221 is a three-channel high-side bus voltage and current monitor with an I2C and SMBUS compatible interface. The INA3221 controls both the caYoShunt voltage or the bus supply voltages, plusZUs to have conversion times or programmable modes and average for these ifNE beers.

The INA3221 provides critical alarms YoTic and warning to detect  or multiple programmable off-range conditions for each channel.

The INA3221 detects the current on the buses, which can vary between 0V and 26V. The device is powered by a single 2.7 V to 5.5 V supply and consumes 350 µA (peak value) of the supply current. The INA3221 is specified for the operating temperature range from -40°C to +125°C. I2C and SMBUS compatible interface has four programmable addresses.

High performance: high accuracy: offset voltage: ±80 µV (max); gain error: 0.25% (max. ); configurable media options; four programmable addresses; programmable alarm and warning outputs; power operation: 2.7V to 5.5V; detect bus voltages from 0V to 26V; reports shunt and bus voltage.
