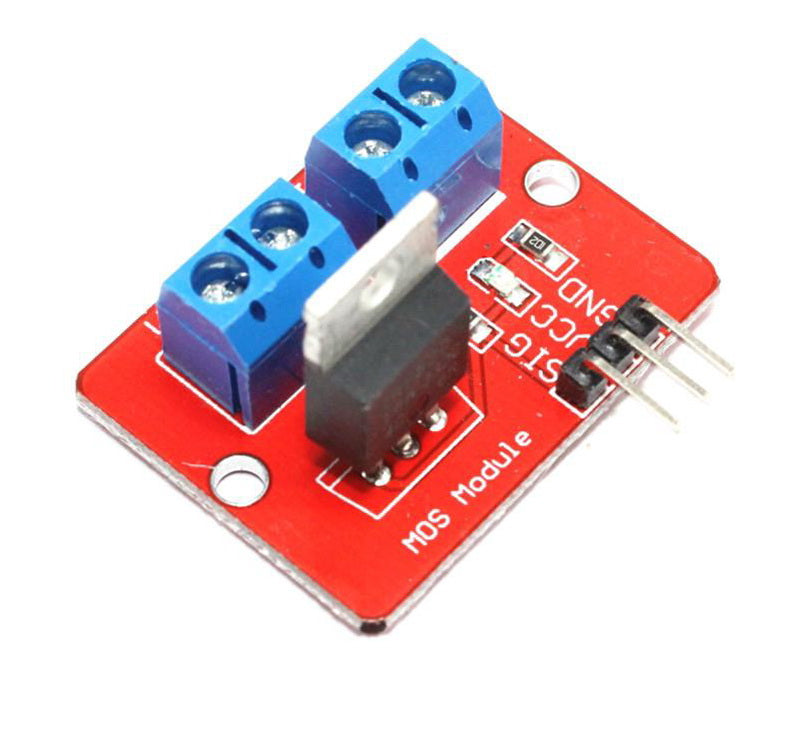

IRF520 MOSFET driver module

The IRF520 MOSFET Driver Module is a compact and efficient solution for controlling high power devices with digital logic from microcontrollers. This module utilizes the IRF520 power MOSFET, which can handle up to 100V and 9.7A, making it suitable for driving moderate to high-power devices such as motors, high-power LEDs, and other electronic loads.

This module is designed to interface directly with 3.3V or 5V systems, like those found in Arduino and other microcontroller platforms. The input side is compatible with digital control signals from these microcontrollers, allowing users to easily switch high power loads on and off.

One of the key features of the IRF520 MOSFET Driver Module is its ease of use. It includes a built-in resistor for the gate, protecting the MOSFET from receiving too high a voltage from the microcontroller. Additionally, the module typically includes a flyback diode across the load to protect against voltage spikes when driving inductive loads like motors.

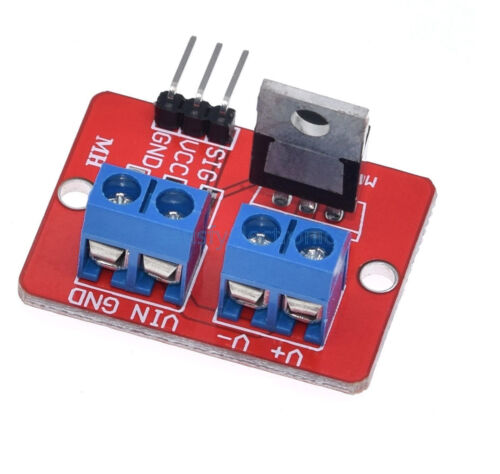

The module's compact design often includes screw terminals for easy connection of the load and power supply, as well as pin headers for connecting the control signal from the microcontroller. This setup provides both flexibility and simplicity in integrating the module into a wide range of electronic projects.

Overall, the IRF520 MOSFET Driver Module offers a practical and cost-effective way to control high-power applications through digital systems, enhancing project capabilities without complex circuitry.
