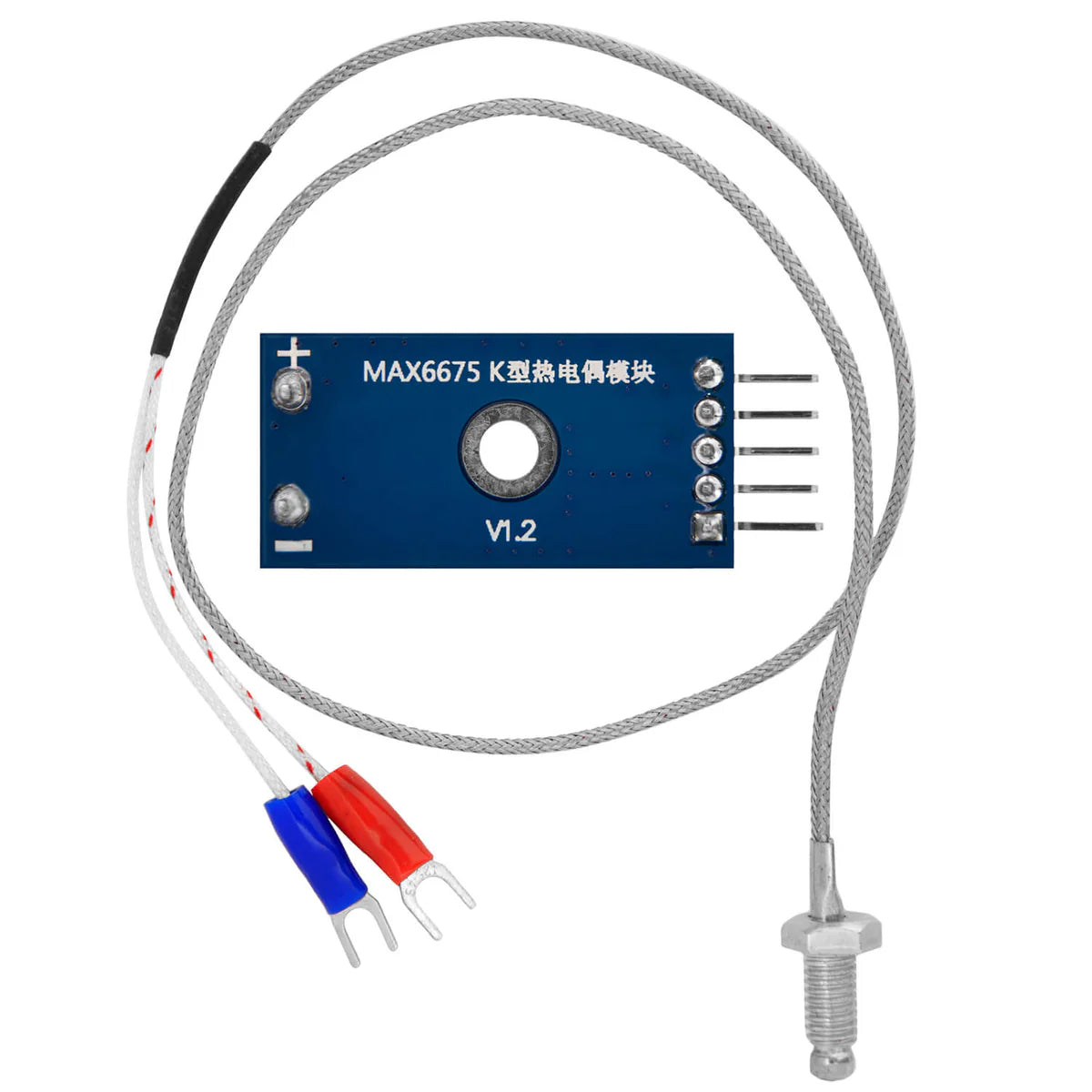

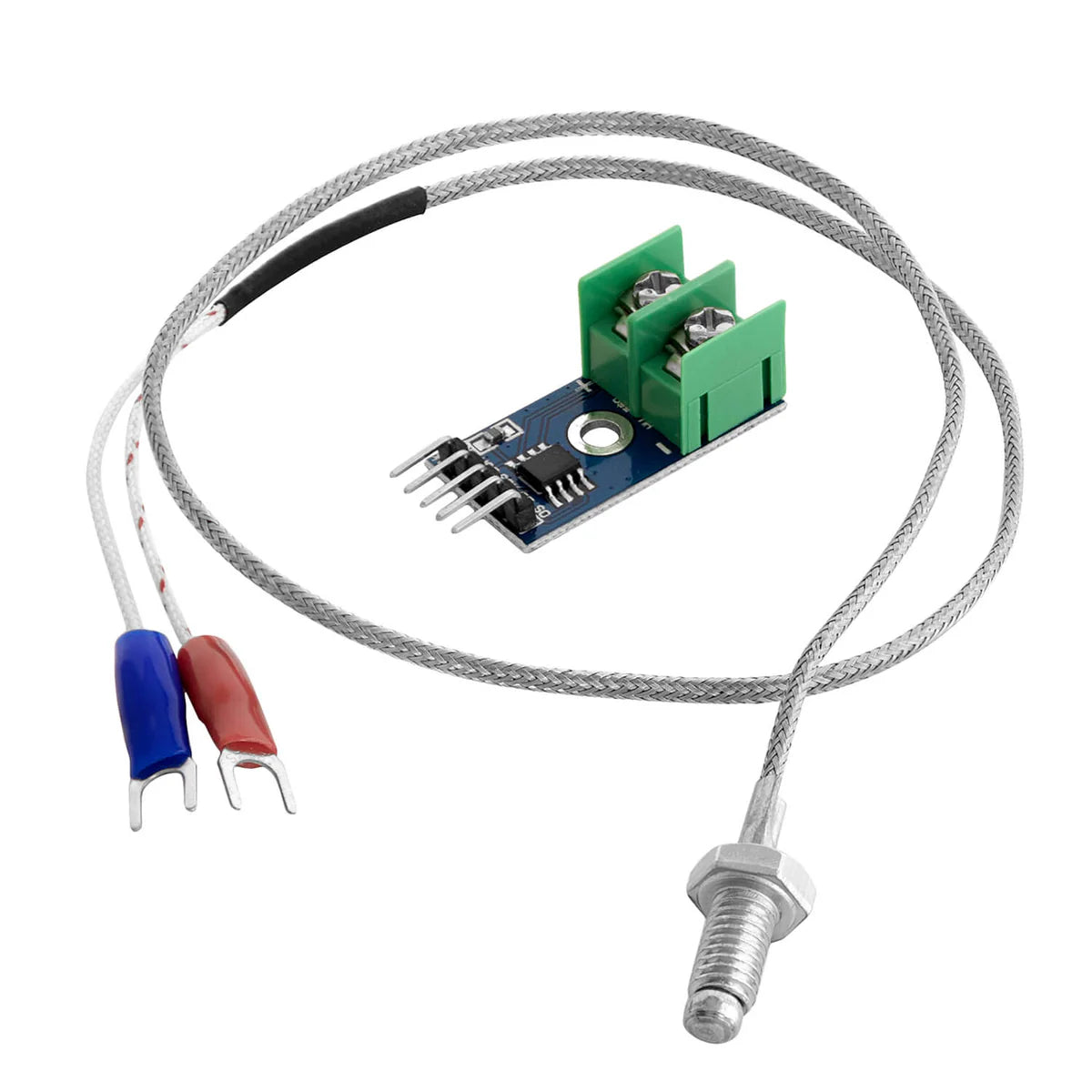

MAX6675 Temperature Sensor with Probe K-Type and Jumper Wire for Raspberry Pi

The MAX6675 module has two attachments one to the microcontroller (e.g. Arduino) and one to the sensor ( + and -).

Module Max6675           Arduino Uno

GND (ground)                       Gnd

VCC                                           5V

SCK (serial clock)                   10

CS (chip select)                       9

So (serial output)                   8

Module Max6675           Thermosensor

 +                                                 red

 –                                                 blue

    MAX6675 comes with a probe that can withstand very high temperatures of up to 1250 degrees Celsius and measure correctly from 0 to 1024 degrees Celsius!

    The resolution of the thermosensor is 0.25 degrees Celsius!

    Operating voltage (module) 3 V to 5.5 V!

    Weight approx. 4 grams and size 15mm x 25mm x 13mm
