Description

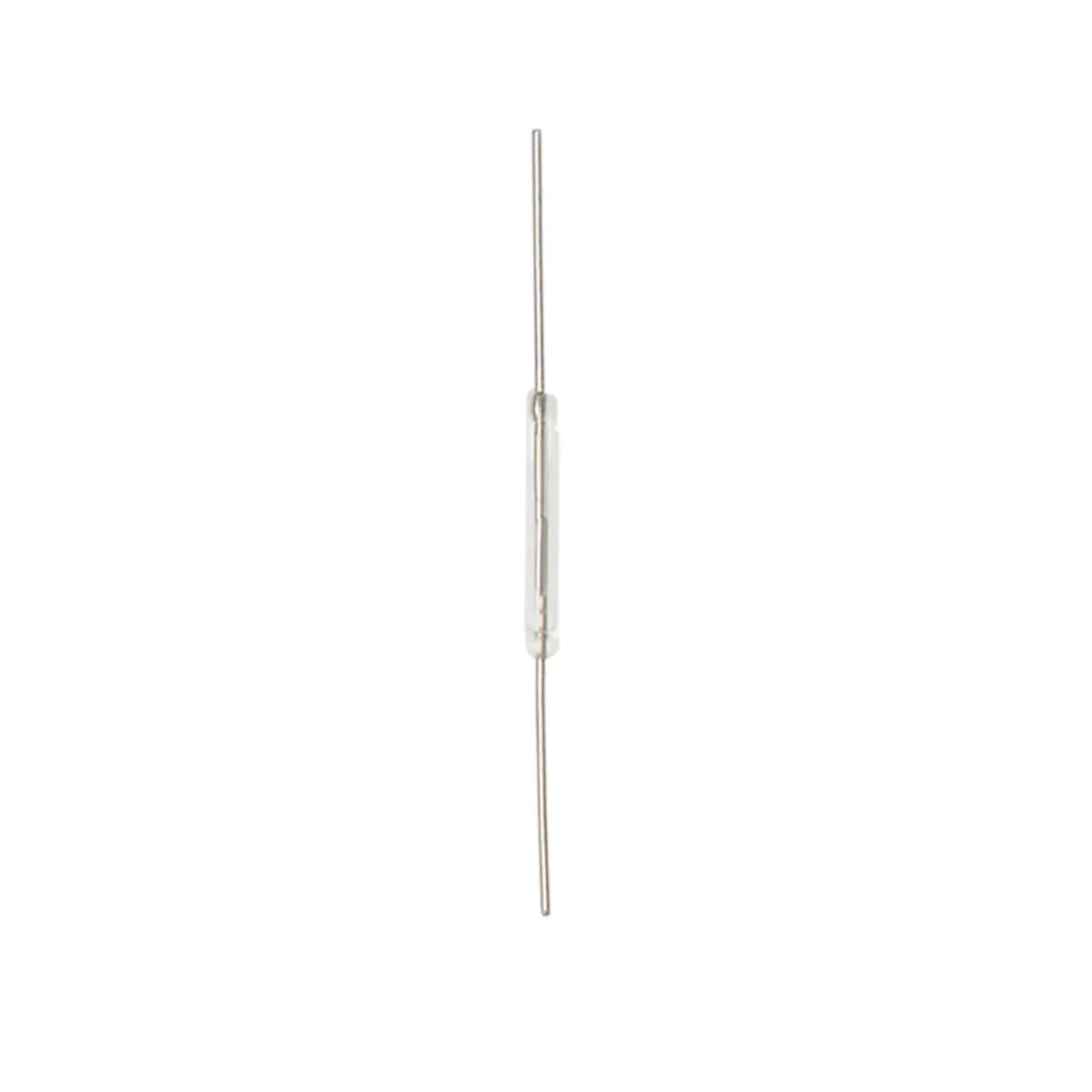

This switch has a maximum switching voltage: DC 100V. max. Switching current: 0.5A. max. Start contact resistance: 100 mOhm. Max. Contact load: 10W. Compact size makes this switch easy to handle.
The switch is characterized By a fast response time and low weight, which makes it suitable for applications with low power consumption.
The reed switch has a wide range of applications, including: program-controlled switches, copiers, washing machines, refrigerators, cameras, disinfection cabinets, window magnets, electromagnetic relays, electronic scales and gas meters.
Due to its compact size, the switch is practical and easy to use in projects.
Total length 44mm
Glass length 14mm
Glass diameter 2mm
Terminal block Grid: 3.5 mm. Hole diameter: 1.2mm.
Contact form A
Maximum power 10W
Maximum switching voltage 100VDC
Maximum switching current 0,5A
Action time 0,45 ms
Bounce time 0.25 ms
Release time 0.35 msg
Resonant frequency 5000Hz
Maximum operating frequency 400Hz
Minimum reset value: 4FT
Maximum contact capacity 0.5pF
The reed switch contains a pair of magnetizable, flexible metal reeds whose end sections are separated By a small gap when the switch is open.
