Description

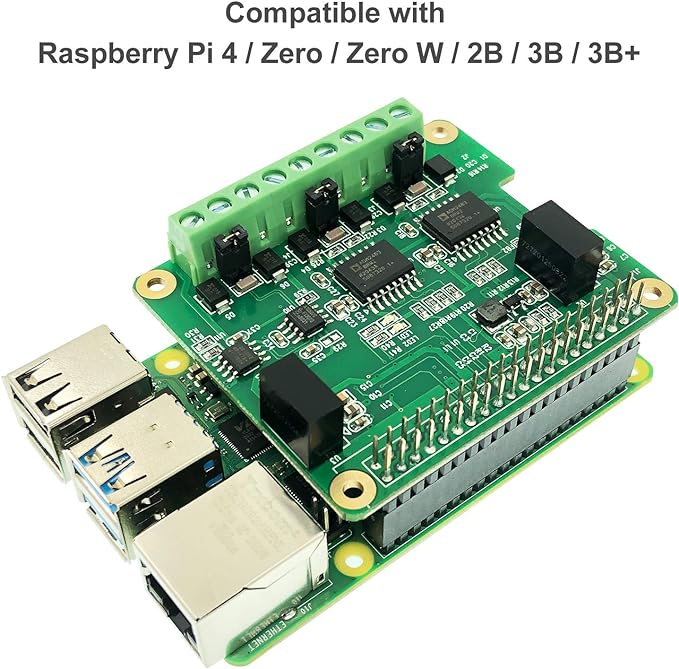

- The RS485 CAN module compatible with Raspberry Pi 4 / Zero / Zero W / 2B / 3B / 3B+. Only a small amount of GPIO are used and the rest pins allow to work for other extended functions.
- Supports the latest Raspbian (v5.4 kernel), power supply and signal transmission insulation, build-in surge and ESD protection. On-board individual 120 Ohm terminal resistance.

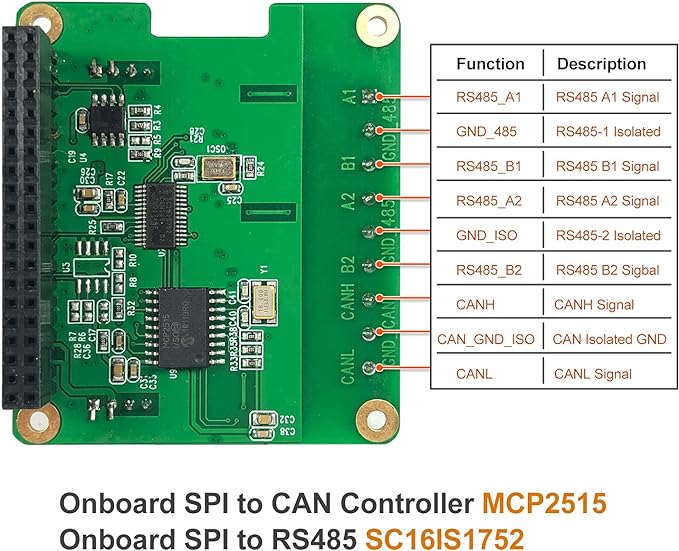

- CAN Function - Onboard CAN controller MCP2515 via SPI interface, onboard high speed CAN transceiver, onboard digital isolation ADUM1201BRZ, communication rates 20Kbps-1Mpbs can be programmed arbitrarily.

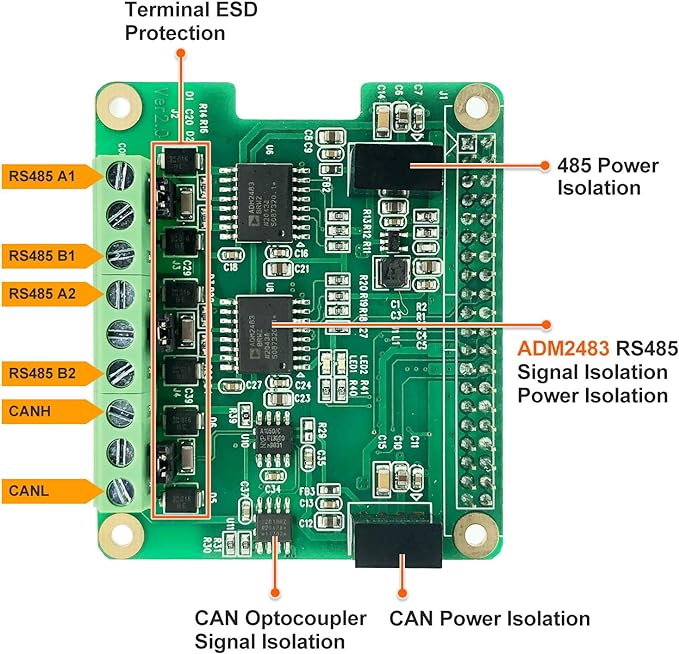

- RS485 function - controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard SPI to RS485 SC16IS1752. Electrical data isolation ADM2483.
