Description

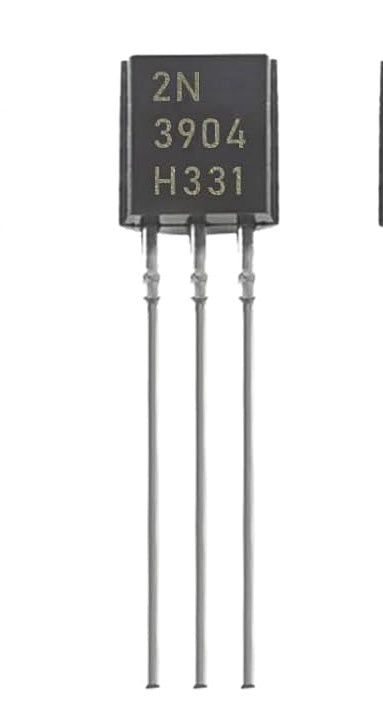

The 2N3904 is a widely popular NPN bipolar junction transistor (BJT) known for its efficiency and versatility in low-power applications. It is commonly used for signal amplification and switching purposes in a variety of electronic devices.
The 2N3904 can handle a maximum collector current (Ic) of 200 mA, making it suitable for small to moderate current applications. It has a maximum collector-emitter voltage (Vceo) of 40 V, which allows it to operate effectively in circuits with medium voltage levels. The maximum collector-base voltage (Vcbo) is 60 V, providing a good safety margin for higher voltage operations.
This transistor also features a maximum emitter-base voltage (Vebo) of 6 V and a power dissipation of 625 mW, ensuring it can manage power efficiently without overheating. The 2N3904 has a transition frequency of 300 MHz, making it an excellent choice for high-speed and high-frequency applications, including RF signal amplification and digital switching.
Its high current gain (beta), which can range typically from 100 to 300, makes it highly effective for amplifying weak signals in audio and data communication systems. Due to its reliable performance and durable design, the 2N3904 is a staple component in both hobbyist projects and commercial electronics.
The 2N3904 can handle a maximum collector current (Ic) of 200 mA, making it suitable for small to moderate current applications. It has a maximum collector-emitter voltage (Vceo) of 40 V, which allows it to operate effectively in circuits with medium voltage levels. The maximum collector-base voltage (Vcbo) is 60 V, providing a good safety margin for higher voltage operations.
This transistor also features a maximum emitter-base voltage (Vebo) of 6 V and a power dissipation of 625 mW, ensuring it can manage power efficiently without overheating. The 2N3904 has a transition frequency of 300 MHz, making it an excellent choice for high-speed and high-frequency applications, including RF signal amplification and digital switching.
Its high current gain (beta), which can range typically from 100 to 300, makes it highly effective for amplifying weak signals in audio and data communication systems. Due to its reliable performance and durable design, the 2N3904 is a staple component in both hobbyist projects and commercial electronics.
