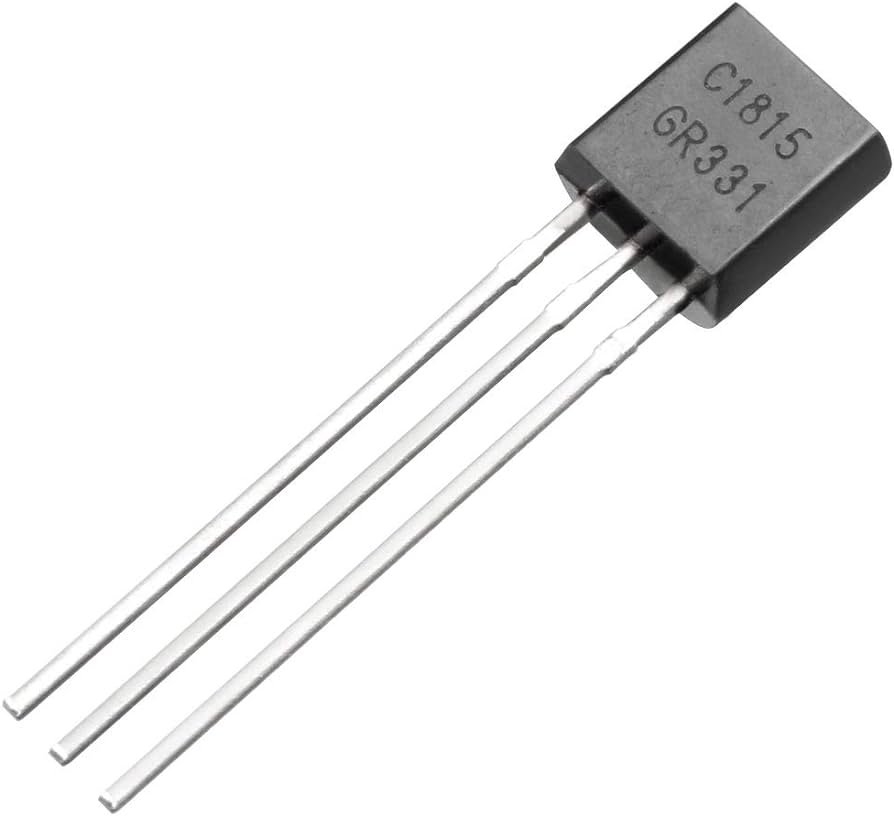

Transistor C1815

The C1815 is an NPN bipolar junction transistor (BJT) noted for its high voltage and moderate current handling capabilities, making it suitable for audio frequency amplification and a variety of switching applications. This transistor is packaged typically in a TO-92 case, which is a small, versatile plastic package ideal for through-hole mounting.

Here are some of the key specifications of the C1815 transistor:

• Collector-Emitter Voltage (V_CE): 50 V maximum
• Collector-Base Voltage (V_CB): 60 V maximum
• Emitter-Base Voltage (V_EB): 5 V maximum
• Collector Current (I_C): 150 mA maximum
• Power Dissipation (P_C): 400 mW maximum
• DC Current Gain (h_FE): ranges widely, often between 70 and 700, depending on the specific classification or grade of the transistor.
